G 781

Feature:Multi-screen Automatically lifting function 5 million high definition camera Packing assistant camera function Exceed 24,000 database Multi-Language Option: table PC

Parameters:• power: 220V • Wheel Size: 11"-23" • Monitor: 32" & 18.5" • target: 4.25kg • Camera Resolution: 5 MP

Measurement and readings:1. Toe/Camber/ Caster/S.A.I (or KPI) 2. Thrust Angle/Chassis wheelbase/wheel track/Rolling Radius/ Set-Back

  • Details

RoadBuck auto-lifting

double LCD screen table PC  3D wheel alignment

more 2,5000 original AUTODATA database

HD Picture

* Feature

Patent design auto lifting type and also suitable for 2post car lift

  1. Full alloy aluminum tracking camera and movable beam  (work level 0 – 2.1 m)
  2. Two monitors equipted on the door of the computer compartment
  3. Optional screen size for main monitor (32″ and 19″)
  4. 4 targets with universal wheel clamps 11″–23″
  5. Windows OS with Brand Canon printer
  6. Easy-to-understand symbols and easy-to-operate software
  7. Complete and up-to-date OEM specs
  8. Free 24hours online firstclass afterservice
  9. Free car specifications database update anytime
  10. 3D Animation alignment instruction make easy operate
  11. 3D measurement screen displayer with all relevant data
  12. Vehicle dimensions and wheel rolling radius measurement
  13. A-arm and cradle adjustment



items

Front axle

Back axle

Precision

Measurement range

Precision

Measurement range

Toe

±0.02

±20°

±0.02

±20°

camber

±0.02

±15°

±0.02

±15°

SAI

±0.02

±26°

Null

Null

caster

±0.02

±26°

Null

Null

Thrust angle

Null

Null

±0.02

±5°





*Hardware

auto-lifting double LCD screen table PC

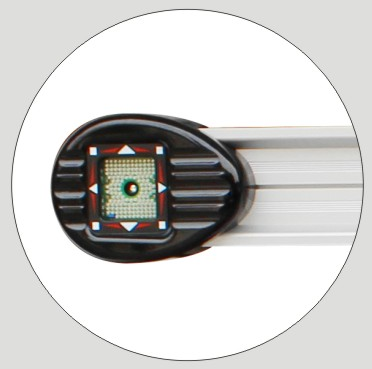

Apply 4.25kg high strength plastic target5,000,000 HD camera

it can also assure accurate alignment measurement when target

plates get smaller. Intelligent LED navigation system: the operator

doesn’t need to check the screen for the instruction of intelligent

LED navigation system and can easily complete wheel alignment.



Software Features

Android available

RoadBuck alibaba china supplier manual 3D Wheel Alignment machine equipment price for sale

Assistant 3D animation for adjusting

3D animation Auxiliary adjustment function

Simple 3 D video demo are available to help the operator to adjust the wheel



Multi-Languages are available for choice

Such as Simplified Chinese, Traditional Chinese, English, Portuguese, Arabic,

Spanish, Russian, Japanese, Korean, French, German, Italian etc.

RoadBuck alibaba china supplier manual 3D Wheel Alignment machine equipment price for sale



Global vehicle’s database

Original vehicle database: Owning more than 25,000 original vehicle database from

 different region around the world.

Inquiry Now

Product Name:G 781
